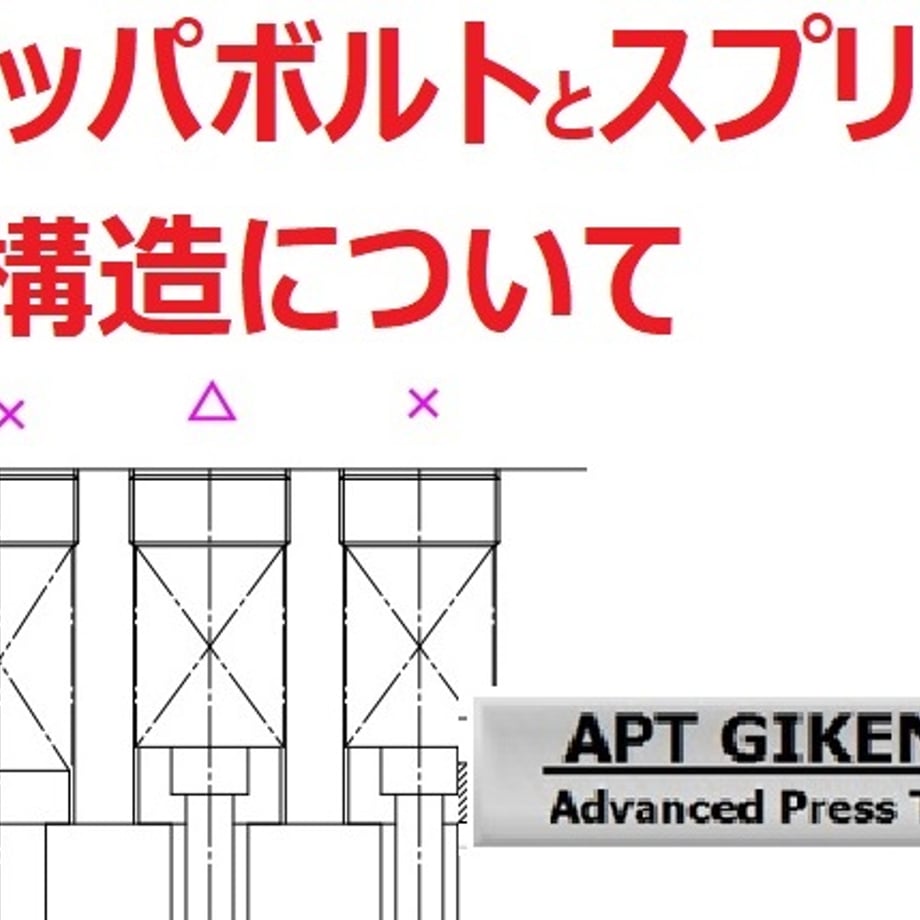

3 ストリッパボルトとスプリングの設置構造(PDF) 3 Installation structure of stripper bolts and springs.
1,100 JPY
※This is digital item
3.pdf
525KB
順送型におけるストリッパボルトとスプリング取り付け構造の解説資料です。
This is an explanation of the stripper bolt and spring mounting structure in the progressive Dies.
All PDF documents are written in Japanese.
There are no links in the documents.
